| Brand Name : | Analog Devices |
| Model Number : | AD7606BBSTZ |
| Certification : | ROHS |
| Price : | NEGOTIABLEE |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 2410PCS/WEEK |
| Delivery Time : | 2-3DAYS |
AD7606BBSTZ Analog Devices Analog to Digital Converters - ADC 8-ch DAS w/16-bit, bipolar input sim-ADC Oversampling Capability With Digital Filter, Analog Input Clamp Protection
1.FEATURES
►16-bit ADC with 800 kSPS on all channels
►Input buffer with 5 MΩ analog input impedance
►1 ppm/°C typical positive and negative full-scale error drift
►−40°C to +125°C operating temperature range
►Single 5 V analog supply and 1.71 V to 3.6 V VDRIVE supply
►±21 V input clamp protection with 8 kV ESD
►Per channel selectable analog input ranges
►Single-ended, bipolar: ±10 V, ±5 V, and ±2.5 V
►Per channel system phase, offset, and gain calibration
►Analog input open circuit detection feature
►≤22 LSB (typical) open circuit code error (RPD = 10 kΩ)
►Self diagnostics and monitoring features
►CRC error checking on read/write data and registers

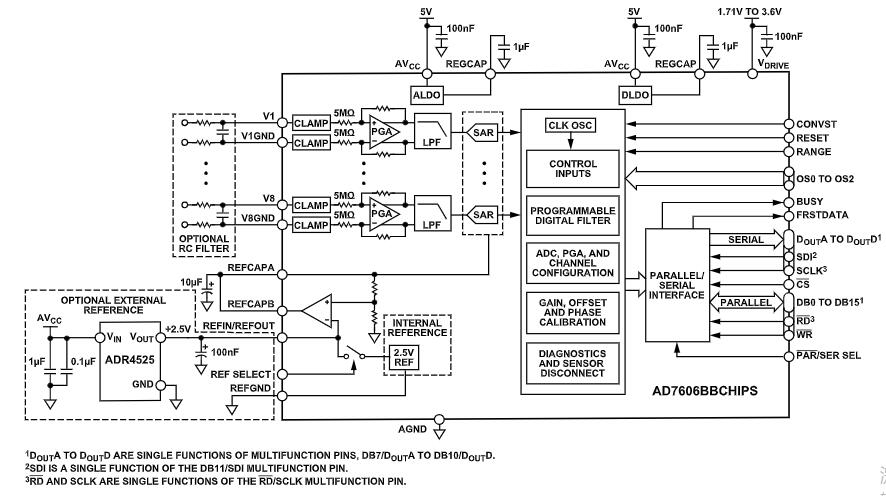

2.FUNCTIONAL BLOCK DIAGRAM
3.APPLICATIONS
►Power line monitoring
►Protective relays
►Multiphase motor control
►Instrumentation and control systems
►Data acquisition systems
4.PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
FUNCTIONAL BLOCK DIAGRAM
|
|
