    TPS78518BQWDRBRQ1 TI LDO Voltage Regulators Automotive,1-A, high-accuracy, adjustable low-dropout (LDO) linear regulator

    Ask Lasest Price
    Brand Name : TI
    Model Number : TPS78518BQWDRBRQ1
    Certification : ROHS
    Price : NEGOTIABLE
    Payment Terms : T/T, Western Union
    Supply Ability : 9000PCS/WEEK
    Delivery Time : 2-3DAYS
    • Product Details
    • Company Profile

    TPS78518BQWDRBRQ1 TI LDO Voltage Regulators Automotive,1-A, high-accuracy, adjustable low-dropout (LDO) linear regulator

    TPS78518BQWDRBRQ1 TI LDO Voltage Regulators Automotive,1-A, high-accuracy, adjustable low-dropout (LDO) linear regulator


    1.Features
    AEC-Q100 qualified for automotive applications:
    –Temperature grade 1: –40°C to +125°C, TA
    •Device junction temperature: –40°C to +150°C, TJ
    •Input voltage range: 1.7 V to 6.0 V
    •Available output voltages:
    –Adjustable option: 1.2 V to 5.5 V
    –Fixed options: 0.65 V to 5.0 V
    •Output accuracy: 0.5% typical, 1.7% maximum
    •Low IQ: 25 μA (typical)
    •Ultra-low dropout:
    –315 mV (max) at 1 A (3.3 VOUT)
    •Internal 550 μs soft-start time to reduce inrush current
    •Active output discharge
    •Packages:
    –3-mm × 3-mm wettable flank VSON (8)
    –5-pin TO-252, RθJA = 31.6°C/W

    2.Applications
    •Automotive head units
    •Hybrid instrument clusters
    •Telematics control units
    •Medium- and short-range radar
    DC/DC CONVERTERS

    3.Description
    The TPS785-Q1 ultra low-dropout regulator (LDO) is a small, low quiescent current LDO that can source 1 A with excellent line and load transient performance
    The low output noise and great PSRR performance make the device suitable to power-sensitive analog loads. The TPS785-Q1 is a flexible device for post regulation because this device supports an input voltage range from 1.7 V to 6.0 V and offers an adjustable output range of 1.2 V to 5.5 V. The device also features fixed output voltages from 0.65 V to 5.0 V for powering common voltage rails
    The TPS785-Q1 offers foldback current limit to reduce power dissipation during a over current condition. The EN input helps with power sequencing requirements of the system. The internal soft-start provides a controlled start up reducing the inrush current allowing for lower input capacitance to be used
    The TPS785-Q1 provides an active pulldown circuit to quickly discharge output loads when disabled

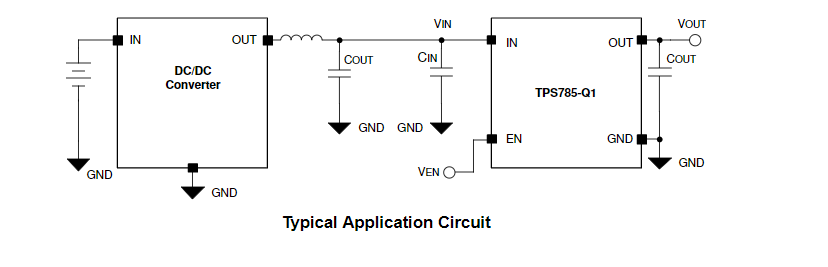

    4.Typical Application Circuit

    5.
