9GA0612P7G01 DC Fans DC Fan 60 x 15mm 12VDC Low Power Tachometer PWM

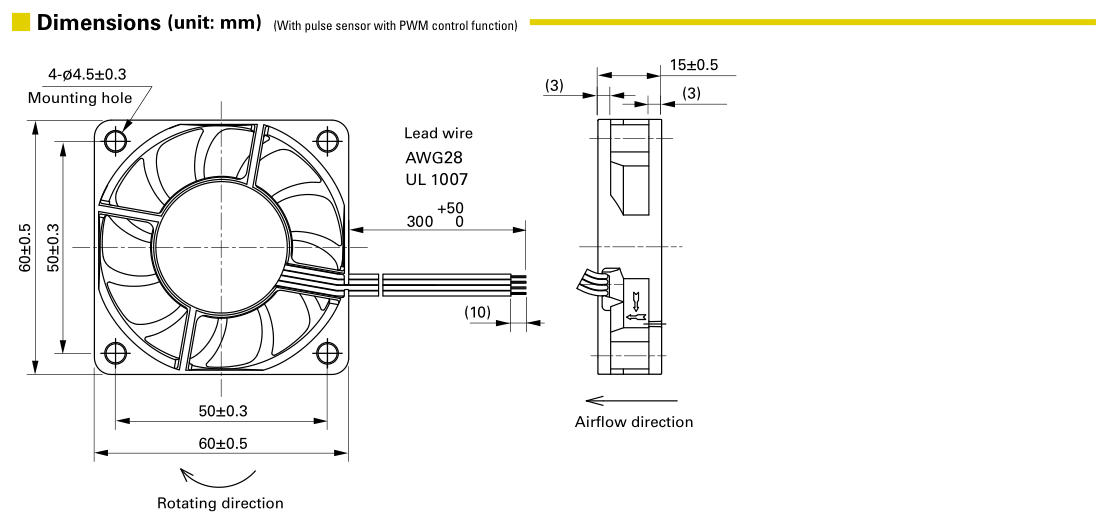

60 × 60 × 15 mm

San Ace 60 9GA type Low Power Consumption Fan

General Specifications

Material ………………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
・ Expected life …………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C,
rated voltage)
・ Motor protection function ………………… Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 547.
・ Dielectric strength …………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
・ Insulation resistance ………………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
・ Sound pressure level (SPL) ……………… At 1 m away from the air inlet
・ Storage temperature ……………………… -30 to +70˚C (Non-condensing)
・ Lead wire ……………………………………… Red Black Sensor Yellow Control Brown
(For models without PWM control function, there is no speed control wiring.)
・ Mass ……………………………………………… 50 g

Specifications
The models listed below have ribs and pulse sensors with PWM control function.

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your MOQ?

A:We provide you small MOQ for each item, it depends your specific order!

Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.

Q4: How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.

Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!

The following sensor and control options are available for selection.
Available for all models. Without sensor
Differs according to the model. Refer to the table on p. 571. Pulse sensor Lock sensor

The models listed below have ribs and pulse sensors.

Sanyo Denki:
9GA0612P7H01 9GA0612P7G01 9GA0612L701 9GA0612G701 9GA0612H701 9GA0612M701 9GA0624P7G01
9GA0612G702 9GA0612H702 9GA0612G7D01 9GA0624M701 9GA0624M702 9GA0612H7D01 9GA0612L702
9GA0612L7D01 9GA0612M702 9GA0624G702
