| Brand Name : | LONGSUNG |
| Model Number : | U9300C |
| Certification : | CE、ROHS |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 4600pcs/month |
| Delivery Time : | 3-5days |

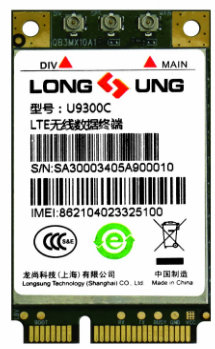

U9300C LTE WCDMA TD-SCDMA CAT4 mini Pcie support GPS wireless module
| Longsung | U9300-C | U9300-E |
| Technology | LTE | |
| Pictures |  |  |
| Gerneral Features | ||
| Chip | Qualcomm | Qualcomm |
| Packaging | 52-pin Mini-PCIe | 52-pin Mini-PCIe |
| Dimensions (mm) | 51.0×30.0×4.6 | 51.0×30.0×4.6 |
| Band | LTE-TDD Band 38/39/40/41 LTE-FDD Band 1/3/5/7/8 TD-SCDMA Band 34/39 UMTS Band 1/8 EVDO BC0 CDMA1x BC0 GSM Band 2/3/5/8 | LTE-TDD Band 38/39/40/41 LTE-FDD Band 1/3/5/7/8 TD-SCDMA Band 34/39 UMTS Band 1/8 EVDO BC0 CDMA1x BC0 GSM Band 2/3/5/8 |
| Weight (approx.) | < 12g | < 12g |
| Temperature Range | -40°C ~ +85°C | -40°C ~ +85°C |
| SMS | Support | Support |
| Data Transmission | ||
| UE-Category | 4 | 4 |
| LTE-FDD/LTE-TDD (Mbps) | 150 (DL)/50 (UL) | 150 (DL)/50 (UL) |
| MIMO-HSPA+ (Mbps) | Not Supported | Not Supported |
| 3C-HSPA+ (Mbps) | Not Supported | Not Supported |
| DC-HSPA+ (Mbps) | 42.2 (DL)/5.76 (UL) | 42.2 (DL)/5.76 (UL) |
| HSPA+ (Mbps) | 21.6 (DL)/5.76 (UL) | Compatibility Support |
| HSPA (Mbps) | 7.2 (DL)/5.76 (UL) | Compatibility Support |
| UMTS (Kbps) | 384 (DL&UL) | Compatibility Support |
| TD-SCDMA (Mbps) | Not Supported | Not Supported |
| EDGE (Kbps) | Not Supported | Not Supported |
| 1xEV-DO Rev B (Mbps) | Not Supported | Not Supported |
| CDMA 1xEV-DO Rev A (Mbps) | 3.1 (DL)/1.8 (UL) | Not Supported |
| CDMA 1xEV-DO Rev 0 | 2.4Mbps (DL)/153.6Kbps (UL) | Not Supported |
| CDMA 1xRTT (Kbps) | 153.6 (DL&UL) | Not Supported |
| GPRS (Kbps) | 85.6 (DL&UL) | 85.6 (DL&UL) |
| CSD | Support | Support |
| Protocols(TCP/IP) | Support | Support |
| Interfaces | ||
| SIM | 1.8V/3.0V | 1.8V/3.0V |
| UART | Support | Support |
| USB 2.0 High Speed | Support | Support |
| Audio Analog | Support | Support |
| Audio Digital (PCM) | Support | Support |
| Antenna | ANT_PRI/ANT_DIV/GPS_ANT | ANT_PRI/ANT_DIV/GPS_ANT |
