| Brand Name : | Eaton |
| Model Number : | 0603ESDA -TR1 |
| Certification : | ROHS |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 500000PCS/WEEK |
| Delivery Time : | 3-5DAYS |
Bussmann Eaton 0603ESDA TR1 Integrated Circuit Components ESD Suppressor TVS Diode 0603 CERAMIC SUR 6X
Applications
• Computers and peripherals • HDTV Equipment
• DVD Players • A/V Equipment
• Satellite radio • Cell phones
• PDAs • Digital still cameras
• Digital camcorders • MP3 / Multimedia players
• Set Top Boxes • External Storage
• DSL Modems
• High speed data ports
- USB 2.0/3.0 - IEEE 1394
- High speed ethernet - DVI
- Infiniband® - HDMI
• 5,000 pieces in paper tape on 7 inch diameter (178mm) reel.
Device Marking
PolySurg™ ESD Suppressors are marked on the tape and reel
packages, not individually. Since the product is bi-directional and
symmetrical, no orientation marking is required.
Design Consideration
The location in the circuit for the TR series has to be carefully
determined. For better performance, the device should be placed
as close to the signal input as possible and ahead of any other
component. Due to the high current associated with an ESD
event, it is recommended to use a “0-stub” pad design (pad
directly on the signal/data line and second pad directly on common
ground).

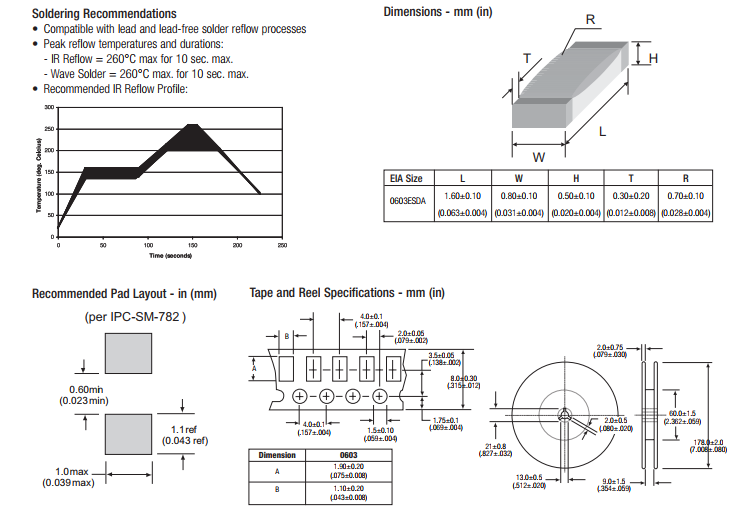

Processing Recommendations
The TR series currently has a convex profile on the top surface of
the part. This profile is a result of the construction of the
deice.
They can be processed using standard pick-and-place equipment.
The placement and processing techniques for these
devices are similar to those used for chip resistors and chip
capacitors
Environmental Specifications: • Moisture Resistance per EIA/IS-722 Paragraph 4.4.2. This standard is based upon MIL-STD-202G Method 103B but with temperature and relative humidity at +85°C and 85% RH respectively. Test condition ‘A’ (240Hr) per MIL-STD-202G. • Thermal shock: MIL-STD-202, Method 107G, -55°C to 125°C, 30 min. cycle, 10 cycles. • Vibration: MIL-STD-202F, Method 201A,(10 to 55 to 10 Hz, 1 min. cycle, 2 hrs each in X-Y-Z). • Chemical resistance: ASTM D-543, 4 hrs @ 40°C, 3 solutions (H2O, detergent solution, defluxer). • Operating temperature characteristics, measurement at +25°C, +105°C and -56°C. • Full load voltage: 14.4Vdc, 18Vdc & 24Vdc for 1000 hrs, 25°C. • Solder leach resistance and terminal adhesion: Per EIA-576. • Solderability: MIL-STD-202, Method 208 (95% coverage).
