1. FEATURES
− Low Voltage Operation : 1. 8 V to 5. 5 V
− Low On-Resistance: 0. 5Ω(TYP)
− Low On-Resistance Flatness
− –3 dB Bandwidth: 30 MHz
− Fast Switching TimetON 16 nstOFF 15 ns
− Rail-to-Rail Operation
− Typical Power Consumption (<0.01 µW)
− TTL/CMOS Compatible
− Microsize Package

2. GENERAL DESCRIPTION
The SGM3005 is a dual, low ON-resistance, low voltage,bidirectional,single-pole/double-throw
(SPDT)CMOS
analog switches designed to operate from a single +1.8V to
+5.5V supply. Targeted applicationsincludebattery
powered equipment that benefit from low RON (0.5Ω) andfast switching speeds (tON = 16 ns, tOFF = 15 ns).The on resistance profile is very flat over the full analog
signal range. This ensures excellent linearity and low
distortion when switching audio signals.
The SGM3005 is a committed dual single-pole/double
-throw (SPDT) that consist of two normally open (NO) and
two normally close (NC) switches. This configuration can
be used as a dual 2-to-1 multiplexer.
SGM3005 is available in a MSOP-10 and DFN-10 packages

3.MSOP-10

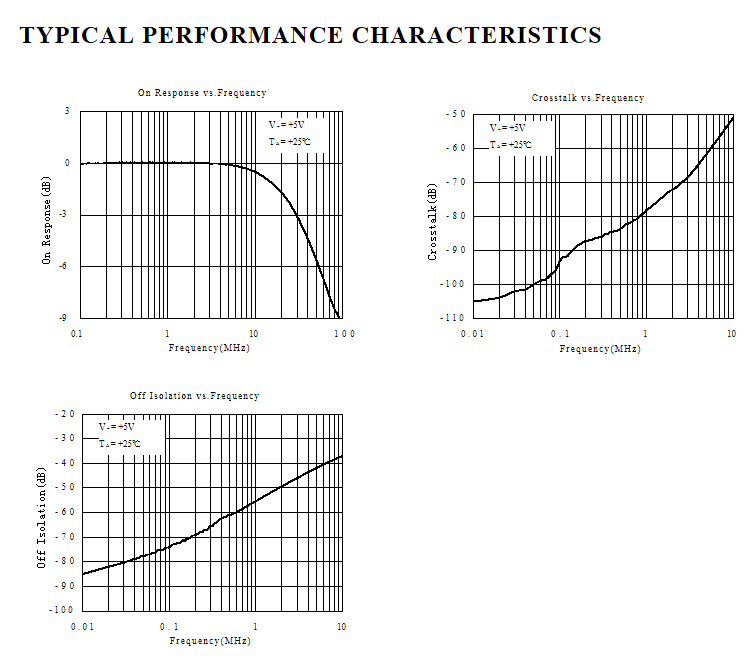

4. TYPICAL PERFORMANCE CHARACTERISTICS
