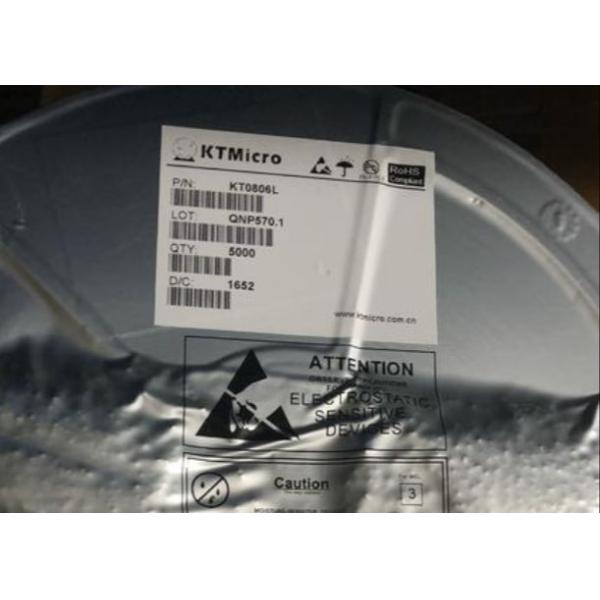

KT0806L IGBT Driver FM Radio Frequency/Receiver KTMICRO

required

1.Features
Hardware compatible with KT0806 Additional features to KT0806 Software standby;
Automatic power down power amplifier when silence is detected;
Multiple reference clock support including from 32.768KHz to 26MHz;
ALC (Automatic Level Control) Higher SNR (66dB)
Increased audio frequency response Software controlled XTAL selection
Professional Grade Performance:
SNR ≥66 dB
Stereo Separation >40 dB
International compatible 70MHz ~ 108MHz
Ultra-Low Power Consumption:
< 17 mA operation current
< 3 µA standby current
Small Form Factor:
16-pins QFN 3x3
Simple Interface: Single power supply
Standard 2-wire I2C MCU interface
Advanced Digital Audio Signal Processing:
On-chip 20-bit ΔΣAudio
ADC On-chip DSP core
On-chip 24dB PGA with optional 1dB step
Automatic calibration against process
and temperature 1.6V ~ 3.6V supply
Programmable transmit level
Programmable pre-emphasis (50/75 µs)
Pb-free and RoHS Compliant

2.General Description

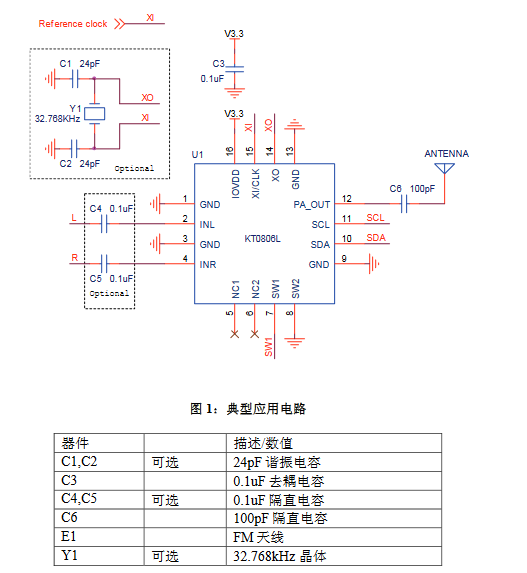

KT0806L, our new generation of low cost Monolithic Digital FM Transmitter, is designed to process high-fidelity stereo audio signal and transmit modulated FM signal over a short range. It’s based on the architecture of award-winning KT0801 and it’s also an upgrade of KT0806. The additional features added to KT0806L are standby mode through software, ALC (automatic level control), multiple reference clock, increased SNR performance and frequency response. The KT0806L features dual 20-bit ΔΣaudio ADCs, a high-fidelity digital stereoaudio processor and a fully integrated radio frequency (RF) transmitter. An on-chip low-drop-out regulator (LDO) allows the chip to be integrated in a wide range of low-voltage battery-operated systems with power supply ranging from 1.6V to3.6V. The KT0806L is configuredas an I2C slave and programmed through the industry standard 2-wire MCU interface
Thanks to its high integration level, the KT0806L is
mounted in a generic 16-pin QFN package. It only requires
a single low-voltage supply. No external tuning is
