PSS15S92F6-AG IGBT Modules

1.MAIN FUNCTION AND RATINGS
3 phase DC/AC inverter
600V / 15A (CSTBT)
N-side IGBT open emitter
Built-in bootstrap diodes with current limiting resistor

2.APPLICATION
AC 100~240Vrms(DC voltage:400V or below) classlow power motor control

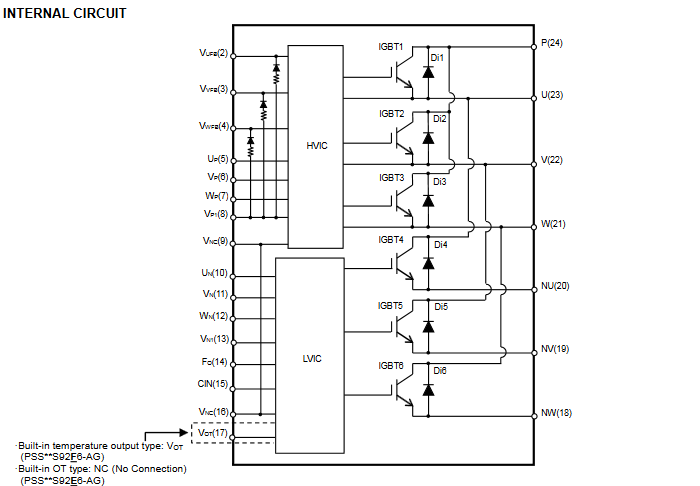

3.INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS
● For P-side: Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection
● For N-side:Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC), Over temperature protection (OT, PSS15S92E6-AG only)
● Fault signaling : Corresponding to SC fault (N-side IGBT), UV fault (N-side supply) and OT fault
● Temperature output : Outputting LVIC temperature by analog signal (PSS15S92F6-AG only)
● Input interface : 3, 5V line, Schmitt trigger receiver circuit (High Active)
● UL Recognized : UL1557 File E32358
