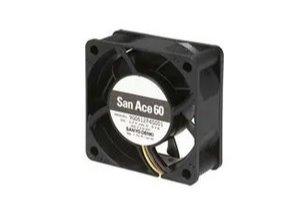

9WF0624H701 DC Fans 24V,Oil Proof

1.General Specifications

Material ................................................ Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
・ Expected life .......................................... See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60 ̊C, rated voltage)
・ Motor protection function ..................... Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 529.
・ Dielectric strength ................................. 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
・ Insulation resistance .............................. 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
・ Sound pressure level (SPL) .................. At 1 m away from the air inlet
・ Storage temperature ........................... -30 to +70 ̊C (Non-condensing)
・ Lead wire .............................................Red Black Sensor Yellow
・ Mass ...................................................... 62 g
This fan can be used in environments with oil mist

2.The models listed below have ribs and pulse sensors

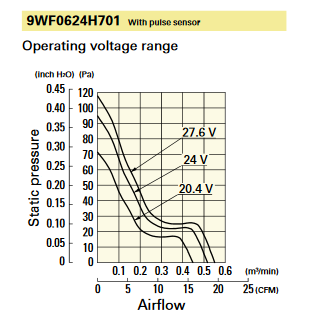

3.Airflow - Static Pressure Characteristics

4.Dimensions (unit: mm)
