TDA7052AG-S08-R 1W BTL MONO AUDIO AMPLIFIER WITH DC VOLUME CONTROL

1.DESCRIPTION

The UTC TDA7052A is mono BTL output amplifier with DC volume control. It is designed for use in TV and monitors, additionally it is suitable for portable recorders and radios. In the IC, a Missing Current Limiter (MCL) is built-in. This function is activated when the difference of current between theOUT+ and OUT- exceed 100mA (typical 300mA). This level of 100mA suit for headphone applications (single-ended)

2.FEATURES.

*Low power consumption
* DC volume control
* Mute mode
* No switch-on and off clicks
* Short-circuit proof
* Good overall stability
* Low HF radiation
* Few external components
* Thermal protection
* ESD protected on all pins
* Missing Current Limiter (MCL)

3.PIN CONFIGURATION

4.PIN DESCRIPTION

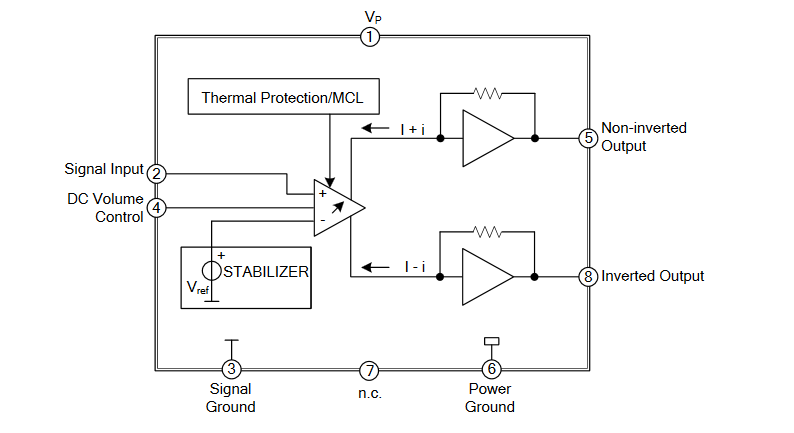

5.BLOCK DIAGRAM

6.TYPICAL APPLICATION CIRCUIT

7.TYPICAL CHARACTERISTICS
