LMP7701MF/NOPB Precision Amplifiers 12V PREC CMOS OP AMP

1.Applications

DACBuffer
• InstrumentationAmplifier
• ActiveFilters

HighImpedanceSensorInterface
• Battery-PoweredInstrumentation
• HighGainAmplifier

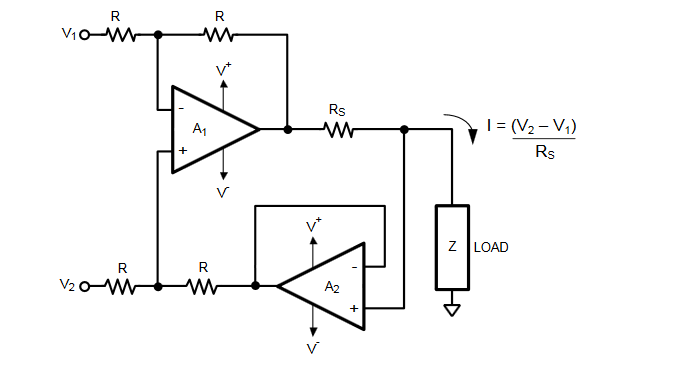

2.Typical Application Schematic

3.Description

TheLMP770xeachhavea rail-to-railinputstagethatsignificantlyreducesthe CMRRglitchcommonlyassociatedwith rail-to-railinputamplifiers.Thisis achievedby trimmingbothsidesof the complimentaryinputstage,therebyreducingthe differencebetweenthe NMOSand PMOSoffsets.Theoutputof the LMP770xswingswithin40 mV of eitherrail to maximizethe signaldynamicrangein applicationsrequiringlow supplyvoltage.
The LMP7701is offeredin the space-saving5-PinSOT-23and 8-PinSOICpackage.The LMP7702is offeredinthe 8-PinSOICand 8-PinVSSOPpackage.The quadLMP7704is offeredin the 14-PinSOICand 14-PinTSSOPpackage.Thesesmallpackagesare idealsolutionsfor areaconstrainedPC boardsandportableelectronics
