HCPL-063L-500E High Speed Optocouplers 15MBd 2Ch 5mA

1.Description

The HCPL-260L/060L/263L/063L are optically coupled gates that combine a GaAsP light emitting diode andan integrated high gain photo detector. An enable in-put allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of15 kV/μs at 3.3V.

This unique design provides maximum AC and DC circuit isolation while achieving LVTTL/LVCMOS compati-bili-ty. The optocoupler AC and DC operational parameters are guaranteed from –40 °C to +85 °C allowing trouble-free system performance.
These optocouplers are suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are recommended for use in extremely high ground or induced noise environments

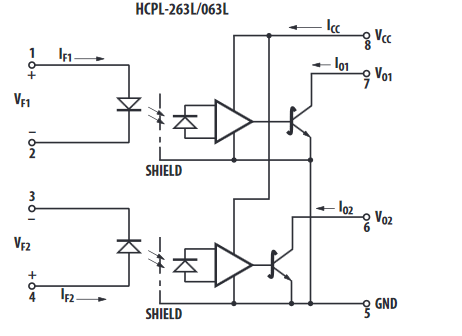

2.Functional Diagram

3.Features
• 3.3V/5V Dual Supply Voltages
• Low power consumption
• 15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000 V
• High speed: 15 MBd typical
• LVTTL/LVCMOS compatible
• Low input current capability: 5 mA
• Guaranteed AC and DC performance over tempera-ture: –40 °C to +85 °C
Available in 8-pin DIP, SOIC-8
• Strobable output (single channel products only)
• Safety approvals: UL, CSA, IEC/EN/DIN EN 60747-5-5

4.Applications
• Isolated line receiver
• Computer-peripheral interfaces
• Microprocessor system interfaces
• Digital isolation for A/D, D/A conversion
• Switching power supply
• Instrument input/output isolation
• Ground loop elimination
• Pulse transformer replacement
• Field buses

5.Thermal Derating Curve Figures
